Exploring a Minimalist Electrospray Particle Trap at Atmospheric Pressure

Generating charged microparticles with DC high voltage and confining them with a separate AC electric field

Charged particles can appear to float in open air when an oscillating electric field continually redirects their motion. The effect is visually striking: tiny illuminated particles gather near an electrode structure, moving rapidly yet remaining confined within a small region of space.

Spruce Science previously demonstrated a minimalist apparatus that paired an electrospray-like charged-particle source with a ring-shaped electrodynamic trap. The experiment offers an accessible doorway into aerosol physics, particle charging, dynamic electric fields, and optical observation.

The scientifically accurate description is important. The visible objects are charged microparticles, not isolated molecular ions of the type stored in a vacuum mass-spectrometer ion trap. The apparatus is better understood as a microparticle electrodynamic trap operating at atmospheric pressure. ^[1]

Exploration scope: This is an experimental and educational concept, not a mass analyzer or a calibrated particle instrument. Stable confinement depends on particle size, charge-to-mass ratio, electrode geometry, AC amplitude and frequency, airflow, humidity, and gravity.

Why a static field is not enough

A charged particle feels a force in an electric field. It might seem that several DC electrodes could simply push the particle toward a fixed center, but static electric fields cannot provide stable three-dimensional confinement of a free charge by themselves.

Electrodynamic traps solve the problem by changing the field with time. A particle may be pushed away in one part of the cycle and pulled back in another. Under suitable conditions, its rapid motion remains bounded around a slower average position.

This is related to the principle behind the Paul trap, recognized in the 1989 Nobel Prize in Physics. ^[2] At atmospheric pressure, viscous drag strongly damps microparticle motion, allowing centimeter-scale traps and relatively low frequencies to produce behavior that can be seen directly.

Two high-voltage functions

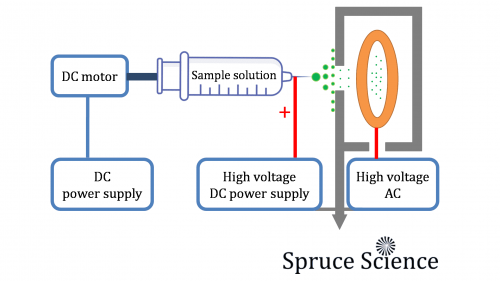

The experiment uses two different electrical systems.

DC high voltage generates charged particles

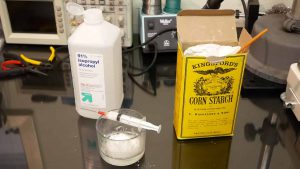

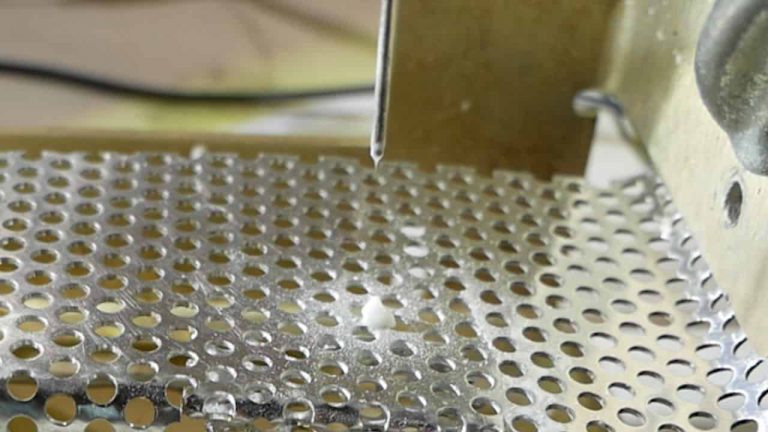

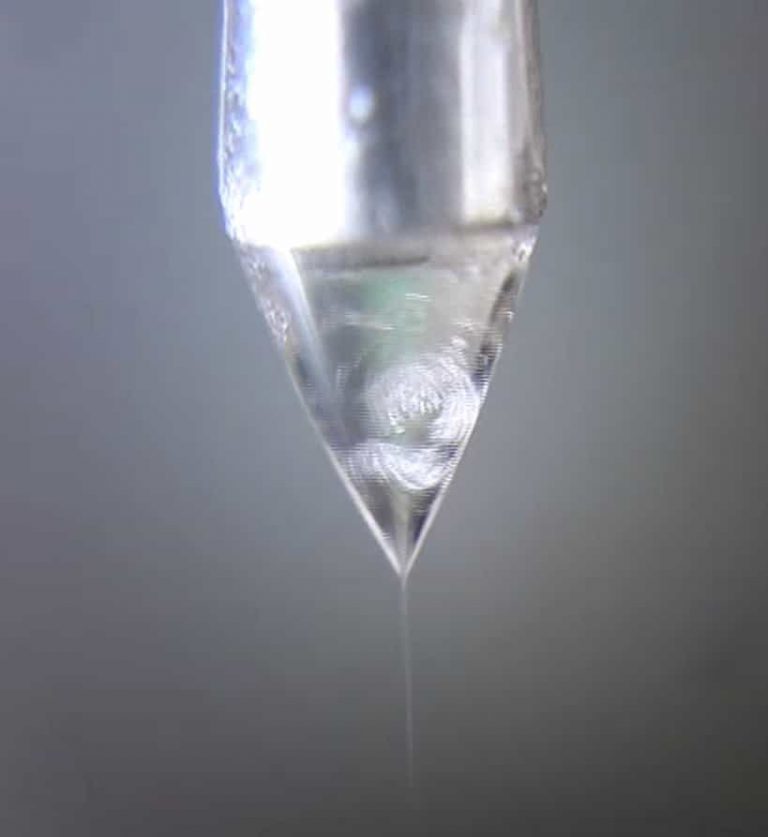

A liquid suspension is delivered through a conductive needle. A regulated DC electric field forms a spray of charged droplets. As solvent evaporates, charged solid particles can remain and travel toward a grounded extraction region.

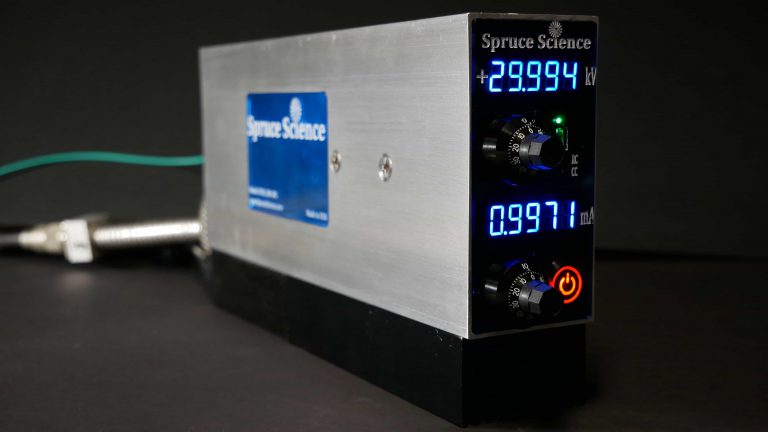

A LabMate DC supply is well suited to this source-development role because voltage can be increased gradually while current and spray behavior are observed.

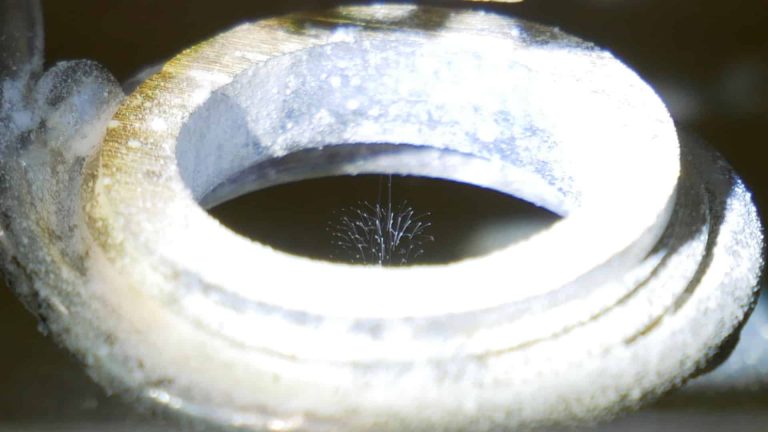

AC high voltage creates the trapping field

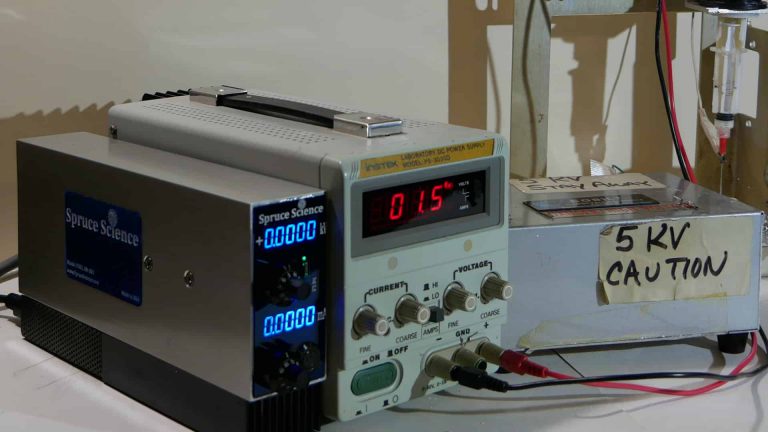

The ring electrode is driven by a separate alternating high-voltage source. The changing field provides dynamic confinement. A LabMate is a regulated DC supply and does not generate the alternating trapping waveform; the trap therefore requires a separate AC high-voltage system designed for the selected amplitude and frequency.

Keeping these functions separate prevents a common misunderstanding: the supply that creates the particles is not necessarily the supply that confines them.

Why the demonstration is compelling

Electric fields become visible

Electric potential is normally abstract. Illuminated particles make the effect of a time-varying field visible in real space.

Electrospray and trapping can be studied together

The particle source determines size, charge, and delivery rate. The trap selects which particles remain confined. Adjusting the source can therefore change the population seen in the trap.

Atmospheric operation lowers the barrier to exploration

Molecular-ion traps generally operate with sophisticated vacuum systems and radio-frequency electronics. A microparticle trap in air does not reproduce that analytical capability, but it can demonstrate related field physics with much larger particles and simpler observation.

The particles become tiny test objects

Once confined, particles can be illuminated and observed over time. Research electrodynamic balances use related principles to study individual aerosol particles, evaporation, optical properties, and reactions with gases. ^[3]

Possible directions for exploration

• Compare particles produced from different safe suspensions.
• Study how humidity changes confinement or evaporation.
• Observe particle motion as AC amplitude or frequency changes.
• Use different lighting wavelengths or imaging methods.
• Explore how ring geometry and grounded boundaries shape the trapping region.
• Investigate capture efficiency as the DC source voltage and flow change.
• Develop the apparatus as a teaching platform for charge, drag, gravity, and dynamic stability.

These studies can remain qualitative or progress toward image-based measurements. The appropriate depth depends on whether the goal is visualization, education, or aerosol research.

Where LabMate fits

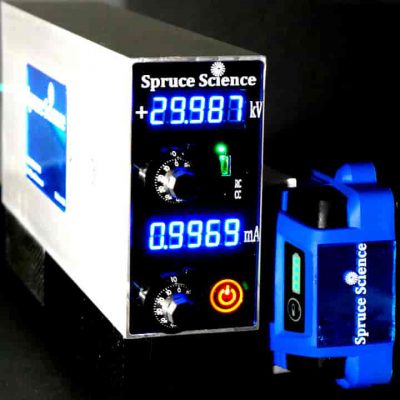

The electrospray source benefits from a supply that is compact, adjustable, current-limited, and easy to monitor. LabMate 10 or a corresponding positive-polarity model can be selected according to the desired particle polarity and electrode arrangement.

Analog Remote control may help when the source is enclosed or when voltage must be coordinated with imaging and particle delivery. Local Control is often sufficient for a hands-on demonstration.

The wider LabMate range also leaves room to explore other electrostatic particle-generation and transport experiments. The correct choice is based on the required voltage, polarity, current, and control method—not on maximum voltage alone. See the LabMate Buying Guide.

What an early experiment should establish

Before optimizing the trap, confirm each subsystem independently:

1. Verify that the DC source produces repeatable charged particles.
2. Characterize where those particles travel without the AC trap energized.
3. Energize the empty trap and verify its waveform and safety enclosure.
4. Introduce particles and observe whether confinement is repeatable.
5. Change one source or trap variable at a time.
6. Record lighting, camera exposure, humidity, voltage, frequency, and geometry.

Visible confinement is the beginning of the study. Quantitative work would require particle-size information, charge estimates, calibrated imaging, and a model of the electric field.

Safety

This apparatus can combine exposed DC and AC high voltage, charged aerosols, small particles, moving liquid, and flammable solvent.

• Enclose both the source and trap and interlock access where appropriate.
• Use a defined protective-earth and return arrangement for each supply.
• Do not assume the AC electrode is safe because its average voltage is zero.
• Review solvent flammability and particle inhalation hazards; use appropriate ventilation and containment.
• Prevent interaction between the two power supplies through ground or signal connections.
• De-energize, isolate, discharge, and verify both systems before access.
• Use a dedicated high-voltage probe rated for the relevant DC and AC measurements.

A visible experiment with real depth

The minimalist particle trap is exciting because it starts as a dramatic visual demonstration and quickly opens into serious questions about charging, drag, stability, aerosols, and field geometry. LabMate provides controlled DC high voltage for generating the particles; the separate AC trap reveals what a time-varying field can do with them.

The result is not a miniature mass spectrometer. It is something valuable in its own right: a compact platform for making electrodynamic particle physics visible.

References

1. K. G. Libbrecht and E. D. Black, “Improved Microparticle Electrodynamic Ion Traps for Physics Teaching,” American Journal of Physics 86 (2018): 539-558. https://doi.org/10.1119/1.5034344
2. Nobel Prize Outreach, “The Traps of Paul and Dehmelt.” https://www.nobelprize.org/prizes/physics/1989/9747-the-traps-of-paul-and-dehmelt/
3. M. B. Hart et al., “Optical Measurements from Single Levitated Particles Using a Linear Electrodynamic Quadrupole Trap,” Applied Optics 54 (2015): F174-F181. https://opg.optica.org/ao/abstract.cfm?uri=ao-54-31-F174

The original Spruce Science demonstration is archived at sprucescience.com/resources/esi-ion-trap/.
